WL-2 options

Order Code
I/O
Port 3 Serial
Analogue Inputs
Expansion Connector
GPS add on
RS485
WL-2S
8In/4Out
TTL**
No
Call***
Available soon
Available soon
WL-2SA
8In/4Out
TTL
2 x 0-5V*
WL-2SR
8In/4Out
RS232
No
WL-2SAR
8In/4Out
RS232
2 x 0-5V*



Standard WL-2S version includes 8 x digital inputs and 4 x high current outputs, 9 way D type serial RS232 connection, Audio connector and base plate plus GSM/GPRS wireless communication.
* Analogue inputs are 0-5V as standard and options of 0-10V, 0-100mV and 0-20mA
** TTL levels on all interface connectors are 3.3V as standard and option of 5V
*** Expansion connector for AT and other applications can be IDC cable header or board to board connector

All our products supports GSM standards that are in use worldwide. Please specify your region when ordering





WL-1B options

Order Code
I/O
Port 3 Serial
IP rated enclosure
Expansion Connector
GPS add on
WL-20B
WL-1BS
4In/2Out
TTL*
Yes
Call**
Available soon
Available soon
WL-1BSR
4In/2Out
RS232
Yes

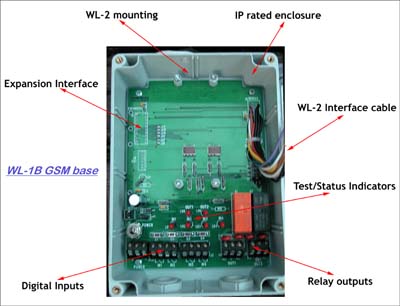

Standard WL-1BS version includes 4 x digital inputs and 2 x high current Mains rated Relays, 9 way D type serial RS232 connection and IP rated enclosure. WL-1B base product integrates the WL-2 GSM/GPRS Pod.

* TTL levels on all interface connectors are 3.3V as standard and option of 5V
** Expansion connector for AT and other applications can be IDC cable header or board to board connector



Accessories

Order Code
Description
WL-001
12V DC /230V AC Mains Adaptor, 1A, 1.3mm DC plug (WL-2/WL-100 version)
WL-002
12V DC /230V AC Mains Adaptor, 1A, 2.1mm DC plug (WL-1B/WL-20B version)
WL-003
PC Serial cable for product Configuration, 9-way D plug to socket
WL-004
Antenna adaptor cable, MMCX plug to FME/M plug 200mm cable
WL-005
GSM Antenna, Magnetic base, FME/F socket 2.5metres cable
WL-006
DIN rail mount enclosure for WL-2/WL-100 modules, 85 x 70mm 60mm height
WL-007
Base Plate for flat panel mounting of WL-2/WL-100 modules, 120 x 70mm * Dust cover is optional
WL-008
12 way IDT cable assembly for WL-2 I/O connectors
* Specify: length and end termination
WL-009
20 way IDC cable assembly for WL-2/WL-100 Expansion connector
* Specify: length and end termination
WL-010
10 way IDC cable assembly for WL-2 Analogue Audio or WL-100 I/O connectors
* Specify: length and end termination
WL-011
GPS Active Antenna 3V, SMB plug, 2.5metres cable



pdf
 DataSheets
 :: WL-2
 :: WL-1B
 :: WL-100
 :: Configurator
 :: Options
pdf
 General
 :: Quick guide
 :: Solutions
 :: Accessories
pdf
 Applications
 :: WL-2 App's
 :: WL-1B App's

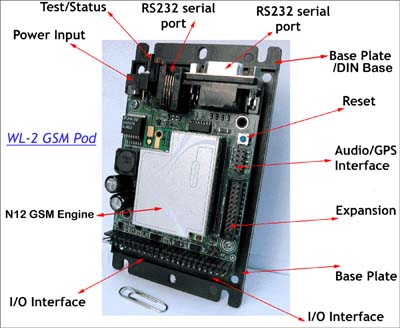

WL-2 GSM Pod

The WL-2 GSM Pod is available in either a DIN rail enclosure or on a pre-drilled plastic base plate
